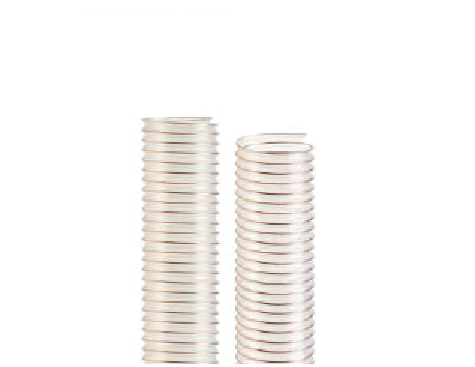

Uraflex Polyurethane Standard Ducting Uraflex Polyurethane Standard Ducting
Type: Polyurethane Standard Ducting Material: Ester-Polyurethane Colour: Transparent (but customer-specific colors can be done) Temperature Range: -30°C - +90°C (for a short time up...
Type: Polyurethane Standard Ducting
Material: Ester-Polyurethane
Colour: Transparent (but customer-specific colors can be done)
Temperature Range: -30°C - +90°C (for a short time up to 100°C)
Applications: Especially suitable for abrasive dust, powders, fibers & sawdust
Wall Thickness: 25mm to 51mm - 0.38mm & 60mm to 600mm - 0.40mm
Standard Length: 10m and up to 15m on request
Properties: Tight bend radius, extremely flexible, very lightweight, high mechanical strength, highly compressible, good mineral oil resistance
**Please Note: Other sizes, colors & strengths are available on request.
| Part Number | Name |
|---|---|
| 28 95032 | Uraflex PUL Std Duct 32mm |
| 28 95038 | Uraflex PUL Std Duct 38mm |
| 28 95044 | Uraflex PUL Std Duct 44mm |
| 28 95051 | Uraflex PUL Std Duct 51mm |
| 28 95060 | Uraflex PUL Std Duct 60mm |
| 28 95064 | Uraflex PUL Std Duct 64mm |
| 28 95070 | Uraflex PUL Std Duct 70mm |
| 28 95076 | Uraflex PUL Std Duct 76mm |
| 28 95080 | Uraflex PUL Std Duct 80mm |
| 28 95089 | Uraflex PUL Std Duct 89mm |
| 28 95102 | Uraflex PUL Std Duct 102mm |
| 28 95110 | Uraflex PUL Std Duct 110mm |
| 28 95115 | Uraflex PUL Std Duct 115mm |
| 28 95120 | Uraflex PUL Std Duct 120mm |
| 28 95127 | Uraflex PUL Std Duct 127mm |
| 28 95140 | Uraflex PUL Std Duct 140mm |
| 28 95152 | Uraflex PUL Std Duct 152mm |
| 28 95160 | Uraflex PUL Std Duct 160mm |
| 28 95180 | Uraflex PUL Std Duct 180mm |
| 28 95203 | Uraflex PUL Std Duct 203mm |
| 28 95228 | Uraflex PUL Std Duct 228mm |
| 28 95254 | Uraflex PUL Std Duct 254mm |
| 28 95305 | Uraflex PUL Std Duct 305mm |
| 28 95350 | Uraflex PUL Std Duct 350mm |
| 28 95406 | Uraflex PUL Std Duct 406mm |
