Arianna 40 BAR PVC Arianna 40 BAR PVC

Type: Arianna 40 Bar Colour: inside and outside completely black with a light blue stripe Temperature range: -10°C +60°C Working pressure: 40 bar Suitable...

Type: Arianna 40 Bar

Colour: inside and outside completely black with a light blue stripe

Temperature range: -10°C +60°C

Working pressure: 40 bar

Suitable for:

Application: Chemical Hoses and Ductings
Industry: Waste Management, Agriculture

Features:

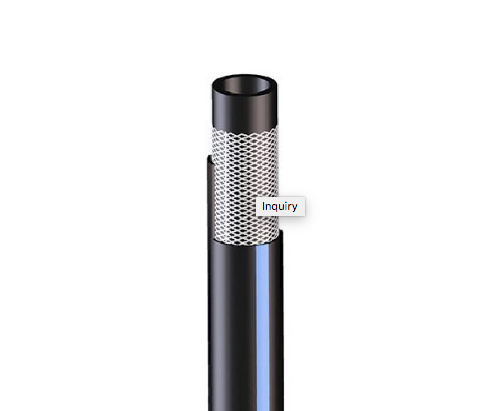

Flexible PVC hose reinforced with a braided polyester thread. Resistant to most chemicals and weather agents. Inside and outside completely black with a light blue stripe.

Extremely smooth inside and outside to ensure the optimization of flow.

Resistant to several chemicals, weather conditions, microbes, hydrolysis, ageing, ozone, UV.

Application: In agriculture, delivery pressure hose of fungicide solutions also containing mineral oils for agriculture spraying.

Name Inner Diameter
(mm)
Outer Diameter
(mm)
Working pressure
(bar)
Weight nominal
(g/m)
Bending radius
(mm)
Length max
(m)
Arianna 40 bar 10mm  10  16.5  40  190  50  100
Arianna 40 bar 13mm  13  21  40  300  70  100
