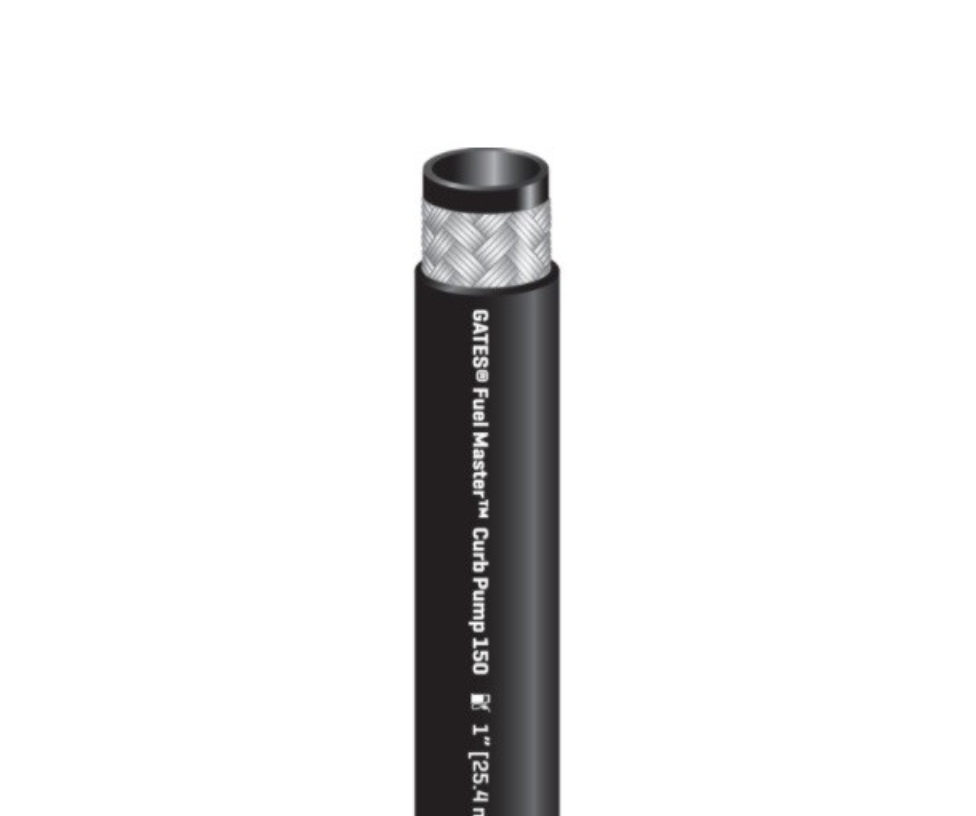

Fuel Master Curb 101 - Gasflex Fuel Master Curb 101 - Gasflex
Type: Rubber - Fuel Hose Applications: Dispensing all types of commercial petrol's, or other petroleum based products, from service station pumps. A...
Type: Rubber - Fuel Hose
Applications: Dispensing all types of commercial petrol's, or other petroleum based products, from service station pumps. A heavy duty hardwall hose which does not collapse in reel use or behind the nozzle in heavy duty service.
Temperature: -30°C to +49°C continuous service.
Construction:
Tube: Type C (Nitrile). Black.
Reinforcement: Braided, high tensile steel wire.
Cover: Type C2 (Modified Nitrile). Black.
Standards: AS 2683/2000 Type 4 grade 2 kind 1& 2
| Part Number | Name |
Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (psi) |
Suction (mm Hg) |
Min. Bend Radius (mm) |
| 10 4825 | Fuel Master Curb Pump 101 ( Gasflex) 25mm | 25 | 38.0 | 101.5 | 635 | 203 |
Type: Rubber - Fuel Hose
Applications: Dispensing all types of commercial petrol's, or other petroleum based products, from service station pumps. A heavy duty hardwall hose which does not collapse in reel use or behind the nozzle in heavy duty service.
Temperature: -30°C to +49°C continuous service.
Construction:
Tube: Type C (Nitrile). Black.
Reinforcement: Braided, high tensile steel wire.
Cover: Type C2 (Modified Nitrile). Black.
Standards: AS 2683/2000 Type 4 grade 2 kind 1& 2
| Part Number | Name |
Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (psi) |
Suction (mm Hg) |
Min. Bend Radius (mm) |
| 10 4825 | Fuel Master Curb Pump 101 ( Gasflex) 25mm | 25 | 38.0 | 101.5 | 635 | 203 |
