Plant Master Plus Steam (250) - Steam Queen Plant Master Plus Steam (250) - Steam Queen
Recommended for: All types of steam (saturated and superheated) up to 250 PSI and +232°C. Special cover for oil resistance. ...
Recommended for: All types of steam (saturated and superheated) up to 250 PSI and +232°C. Special cover for oil resistance.
CAUTION: DO NOT ALTERNATE USE BETWEEN STEAM AND WATER.
Temperature: -40°C to +232°C continuous service.

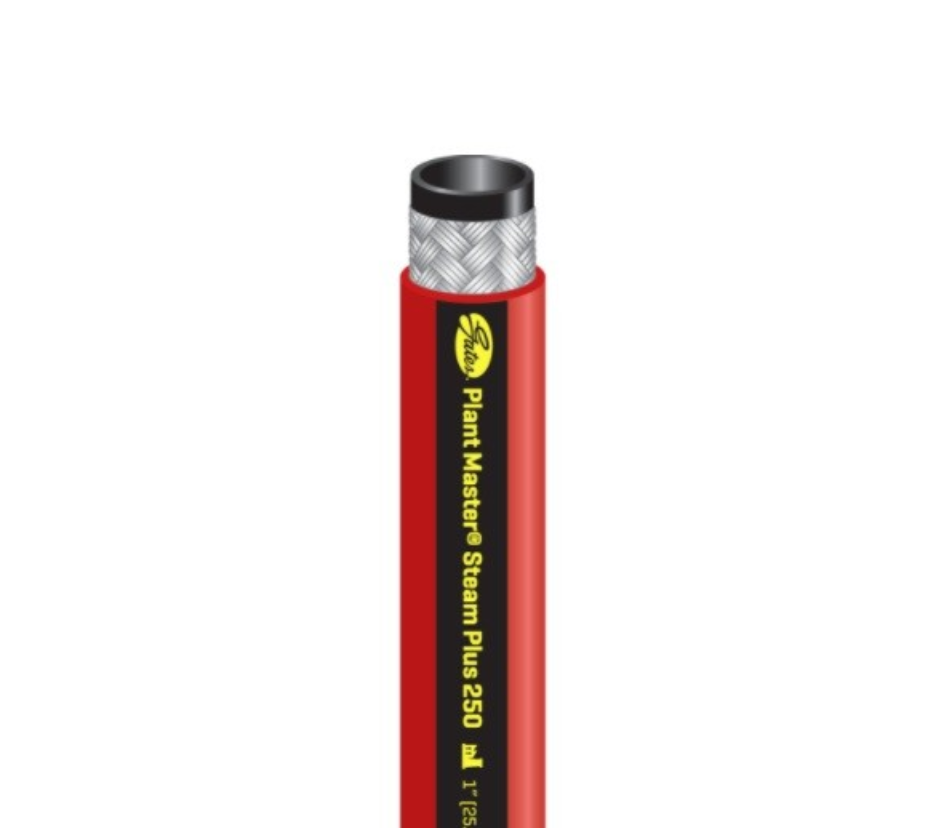

Construction:
Tube: Type P2 (EPDM). Black.
Reinforcement: Braided, high tensile steel wire.
Cover: Type B1 (Special compound resists heat and oil). Red, wrapped, non-marking. All sizes perforated.
Design Factor: 10:1
| Part Number | Name |
Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (psi) |
Suction (mm Hg) |
Min. Bend Radius (mm) |
| 10 6113 | Plant Master Plus Steam 13mm | 13 | 25.9 | 250 | 635 | 178 |
| 10 6119 | Plant Master Plus Steam 19mm | 19 | 32.3 | 250 | 508 | 229 |
| 10 6125 | Plant Master Plus Steam 25mm | 25 | 38.6 | 250 | 508 | 279 |
| 10 6132 | Plant Master Plus Steam 32mm | 32 | - | 250 | 254 | - |
| 10 6138 | Plant Master Plus Steam 38mm | 38 | 55.4 | 250 | 254 | 508 |
| 10 6151 | Plant Master Plus Steam 51mm | 51 | 67.6 | 250 | 254 | 635 |
