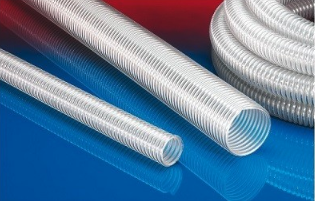

AIRDUC PUR-INOX 356 FOOD-AS AIRDUC PUR-INOX 356 FOOD-AS
Antistatic food hose and pharmaceutical hose, super-heavy, stainless steel (INOX) Applications • hose/ ducting for high throughput of extremely...
Antistatic food hose and pharmaceutical hose, super-heavy, stainless steel (INOX)
Applications
• hose/ ducting for high throughput of extremely abrasive bulk material, granulate and stone• food industry, pharmaceutical industry: foodstuff, pharmaceutical• conveying of dry foods e.g. rice, cereals, sugar, milk powder, powders, coffee, tea, grains, flour, frozen foods• vacuum conveying device, vacuum hopper, suction conveyor, dosing system• pelleting machines/ tablet presses • mixer, dryer, packaging machine, bulk-bag (big bag)-charging and discharging, mill• agricultural industry: pneumatic grain conveyer• animal stall, animal shed: feedstuff conveying, feedstuff plant, animal feed transport• paper mill, paper and pulp industry: waste water, air extraction• silo, silo vehicle/ silo truck, tanker/ tank truck: silo charging, silo dischargingProperties
• super-heavy duty• extremely abrasion-resistant with reinforcement underneath wire and narrow hose pitch• very high pressure, vacuum and compression resistance• Approved by an independent testing laboratory for the complete hose acc. to EU-Directive 10/2011 and EC 1935/2004 and the latest EUDirective 2015/174, food grade polyurethane, complies with: FDA 21 CFR 177.2600 and 178.2010• Approval acc. to EU-Directive 10/2011 (food simulant E) and EC 1935/2004• odourless and tasteless• microbe and hydrolysis resistant• good resistance to oil, gasoline and chemicals• very good low temperature flexibility• permanently antistatic wall: in accordance with ISO 8031 electrical and surface resistance <10⁹ Ω and in accordance with TRGS 727 <2,5*10⁸Ω• in accordance with ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: pneumatic transport of flammable dusts and bulk materials (Zone 20, 21, 22 inside), aspiration of combustible dusts (Zone 22 inside), for conveying for flammable liquids (inside zone 0, 1, 2), for conveying for non-flammable liquids, for use in zone 1 and 2 (gases), for use in zone 0 (gases)• according to DIN 26057 Type 4• manufacturing process acc. GMP EC 2023/2006• conforms to RoHS guidelineTemperature Range
-40°C to 90°CDesign, Material
AIRDUC® profile hose
1. spring steel wire firmly embedded in wall; spiral: stainless steel wire (INOX)2. wall: permanently antistatic premium etherpolyurethane (Pre-PUR®)3. wall thickness 2,0 to 2,5 mm approx. 4. reinforcement of the primary abrasion areas|
Name |
Inner Diameter |
Outer Diameter |
Overpressure |
Underpressure |
Bending Radius |
|
AIRDUC PUR 356 INOX 64mm |
64 |
74 |
2.780 |
1 |
163 |
|
AIRDUC PUR 356 INOX 75mm |
75 |
87 |
2.335 |
1 |
195 |
|
AIRDUC PUR 356 INOX 76mm |
76 |
88 |
2.330 |
1 |
195 |
|
AIRDUC PUR 356 INOX 100mm |
100 |
113 |
1.960 |
1 |
272 |
|
AIRDUC PUR 356 INOX 102mm |
102 |
115 |
1.890 |
1 |
272 |
|
AIRDUC PUR 356 INOX 127mm |
127 |
140 |
1.450 |
0.87 |
336 |
