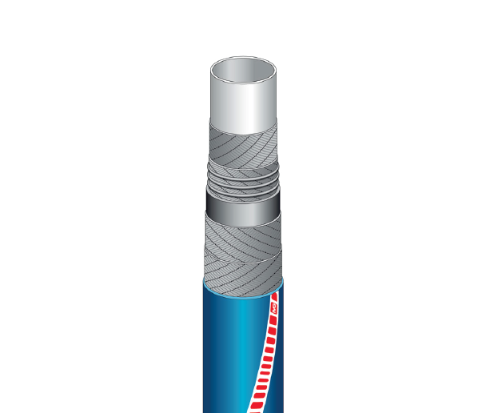

Foodflex Type IIR S&D Tank Truck Hose Foodflex Type IIR S&D Tank Truck Hose
Type : Rubber - Food S&D Hose Standards: Reg. EC 1935/04 and EC 2023/06. Phthalates free. PAHs free (acc. to ZEK 01.4-08...
Type : Rubber - Food S&D Hose
Standards: Reg. EC 1935/04 and EC 2023/06. Phthalates free. PAHs free (acc. to ZEK 01.4-08 Cat. 1). Bisphenol A free. Heavy metal tested. FDA tit.21 art.177.2600 aqueous foods. BfR XXI Cat.2 foods. D.M. 21/03/73 aqueous and alcohol up to 96°
Application: hardwall hose for suction and discharge of milk and foodstuff. The light-weight structure makes it a particularly flexible and easy to handle hose. Ideal for use on tank truck as milk collection hose (not suitable for connections less that 2mt).
Temperature: from -40°C (-40°F) to +120°C (+248°F). Construction Tube: white, smooth, food quality IIR rubber.
Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: blue, smooth (wrapped finish), synthetic rubber, weathering and abrasion resistant.
Also available upon request: 1. Different diametres
| Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure bar | Burst pressure bar | Weight nominal kg/m | Bending radius mm | Vacuum bar | Length max m |
|---|---|---|---|---|---|---|---|---|
| IVG Foodflex Type IIR S&D 38mm | 38 | 49.5 | 6 | 18 | 0.96 | 70 | 0.7 | 60 |
| IVG Foodflex Type IIR S&D 51mm | 51 | 62.5 | 6 | 18 | 1.65 | 110 | 0.6 | 60 |
| IVG Foodflex Type IIR S&D 64mm | 64 | 76.5 | 6 | 18 | 2.21 | 140 | 0.5 | 60 |
| IVG Foodflex Type IIR S&D 76mm | 76 | 89.5 | 6 | 18 | 2.70 | 170 | 0.5 | 60 |
| IVG Foodflex Type IIR S&D 102mm | 102 | 116 | 6 | 18 | 3.63 | 225 | 0.4 | 60 |
Type : Rubber - Food S&D Hose
Standards: Reg. EC 1935/04 and EC 2023/06. Phthalates free. PAHs free (acc. to ZEK 01.4-08 Cat. 1). Bisphenol A free. Heavy metal tested. FDA tit.21 art.177.2600 aqueous foods. BfR XXI Cat.2 foods. D.M. 21/03/73 aqueous and alcohol up to 96°
Application: hardwall hose for suction and discharge of milk and foodstuff. The light-weight structure makes it a particularly flexible and easy to handle hose. Ideal for use on tank truck as milk collection hose (not suitable for connections less that 2mt).
Temperature: from -40°C (-40°F) to +120°C (+248°F). Construction Tube: white, smooth, food quality IIR rubber.
Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: blue, smooth (wrapped finish), synthetic rubber, weathering and abrasion resistant.
Also available upon request: 1. Different diametres
| Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure bar | Burst pressure bar | Weight nominal kg/m | Bending radius mm | Vacuum bar | Length max m |
|---|---|---|---|---|---|---|---|---|
| IVG Foodflex Type IIR S&D 38mm | 38 | 49.5 | 6 | 18 | 0.96 | 70 | 0.7 | 60 |
| IVG Foodflex Type IIR S&D 51mm | 51 | 62.5 | 6 | 18 | 1.65 | 110 | 0.6 | 60 |
| IVG Foodflex Type IIR S&D 64mm | 64 | 76.5 | 6 | 18 | 2.21 | 140 | 0.5 | 60 |
| IVG Foodflex Type IIR S&D 76mm | 76 | 89.5 | 6 | 18 | 2.70 | 170 | 0.5 | 60 |
| IVG Foodflex Type IIR S&D 102mm | 102 | 116 | 6 | 18 | 3.63 | 225 | 0.4 | 60 |
