Poseidon LL Fuel Fill A1 Boat Hose Poseidon LL Fuel Fill A1 Boat Hose
Type : Rubber - Petrol S&D Hose, Fuel suction and delivery hose, fire resistant, used in pleasure boats Standards: European directives 94/25/CE ISO...
Type : Rubber - Petrol S&D Hose, Fuel suction and delivery hose, fire resistant, used in pleasure boats
Standards: European directives 94/25/CE ISO 7840:04 A1, RINA Approved. SAE J 1527:04. USCG Type A1 Style R2.
Application: hardwall hose suitable to convey fuel with an aromatic content up to 50% in pleasure boats up to 24m length. Suitable to be installed even with narrow bending radius.
Temperature: from -30°C (-22°F) to +100°C (+212°F).

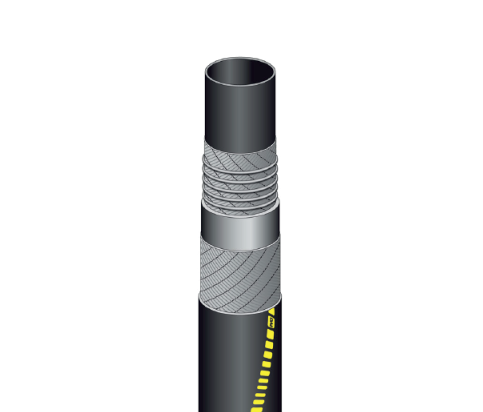

Construction Tube: black, smooth, synthetic rubber. Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: black, smooth (wrapped finish), self-extinguishing synthetic rubber, oil, abrasion, and weathering resistant.
| Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure bar | Burst pressure bar | Weight nominal kg/m | Bending raduis mm | Length max m |
|---|---|---|---|---|---|---|---|
| Poseidon LL Fuel Fill A1,ISO,SAE 25mm | 25 | 36.5 | 10 | 30 | 0.86 | 75 | 120 |
| Poseidon LL Fuel Fill A1,ISO,SAE 38mm | 38 | 50 | 10 | 30 | 1.29 | 115 | 120 |
| Poseidon LL Fuel Fill A1,ISO,SAE 51mm | 51 | 64 | 10 | 30 | 1.80 | 150 | 120 |
