Air Fras Air/Water Air Fras Air/Water
Type: Compressed air hose and water hose Application: Fire resistant and conductive softwall hose for compressed air and water, used in mines....
Type: Compressed air hose and water hose
Application: Fire resistant and conductive softwall hose for compressed air and water, used in mines.
Standards: AS 2660 class B
Temperature: from -15°C (-5oF) to +70oC (+158oF)

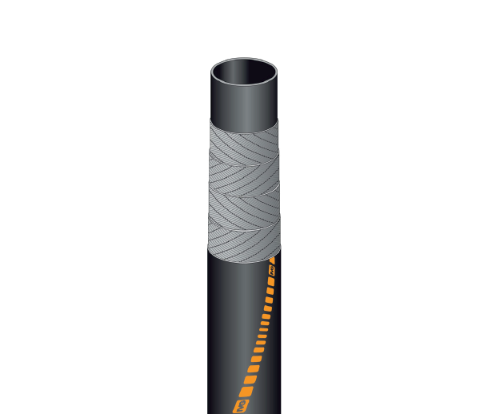

Construction Tube: Black, smooth, conductive NBR rubber, oil resistant.
Reinforcement: high strength synthetic cord.
Cover: Black, smooth, (wrapped finish) in conductive CR rubber, fire, oil, and weathering resistant.
Brand: IVG
Industrial Application: Mining
| Part Number | Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure bar | Burst pressure bar | Weight nominal kg/m | Length max m |
|---|---|---|---|---|---|---|---|
| 05 15015 | Air Fras Hose Class B 15mm | 15 | 23 | 17.5 | 70 | 0.35 | 120 |
| 05 15025 | Air Fras Hose Class B 25mm | 25 | 37 | 17.5 | 70 | 0.71 | 120 |
| 05 15051 | Air Fras Hose Class B 51mm | 51 | 52.5 | 17.5 | 70 | 1.62 | 120 |
| 05 15102 | Air Fras Hose Class B 102mm | 102 | 66 | 17.5 | 70 | 2.05 | 120 |
