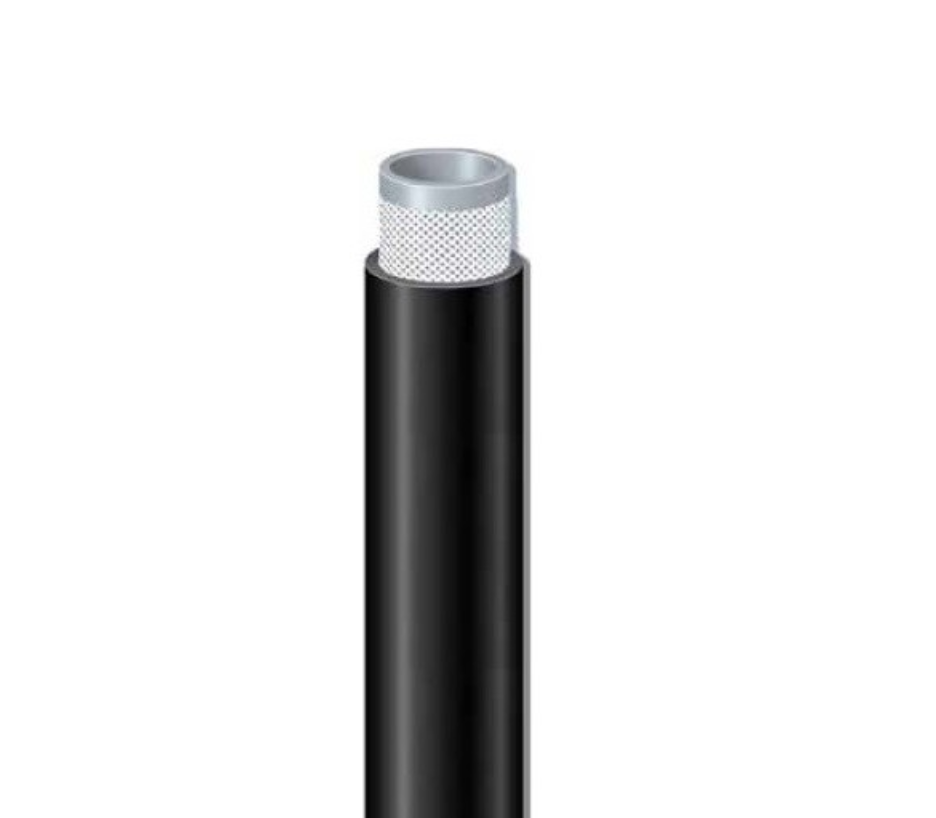

Chem Master Paint Spray 500 (77B) Chem Master Paint Spray 500 (77B)
Application: Paint spray applications, as well as transfer of petroleum based products (aliphatic, aromatic and chlorinated hydrocarbon such as Toluene, Xylene,...
Application: Paint spray applications, as well as transfer of petroleum based products (aliphatic, aromatic and chlorinated hydrocarbon such as Toluene, Xylene, Benzene, gasoline and carbon tetrachloride).
Reference Gates Chemical Resistance Table for proper hose selection. Compatible with commercially available Bio-Diesel fuels up to B-100.
CAUTION: Contact Gates when conveying chemicals above +49°C.
NOT RECOMMENDED FOR ACIDS OR USE IN HIGH PRESSURE PAINT SPRAY APPLICATIONS REQUIRING A STATIC CONDUCTIVE HOSE.
Temperature: -40°C to +66°C continuous service.
Construction:
Tube: Type Z (Special Flexible Nylon II). Clear.
Reinforcement: Synthetic, high tensile textile cord.
Cover: Type A (Neoprene). Black.
Design Factor: 4:1
| Part Number | Name |
Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (psi) |
Suction (mm Hg) |
Min. Bend Radius (mm) |
| 10 9006 | Chem Master 500 (Paint Spray) 06mm | 06 | 13.2 | 500 | 762 | 76 |
| 10 9010 | Chem Master 500 (Paint Spray) 10mm (discontinued, refer NR Spray Hose) |
10 | 17.0 | 500 | 762 | 76 |
| 10 9013 | Chem Master 500 (Paint Spray) 13mm | 13 | 22.1 | 750 | 635 | 127 |
| 10 9019 | Chem Master 500 (Paint Spray) 19mm | 19 | 29.5 | 750 | 635 | 152 |
