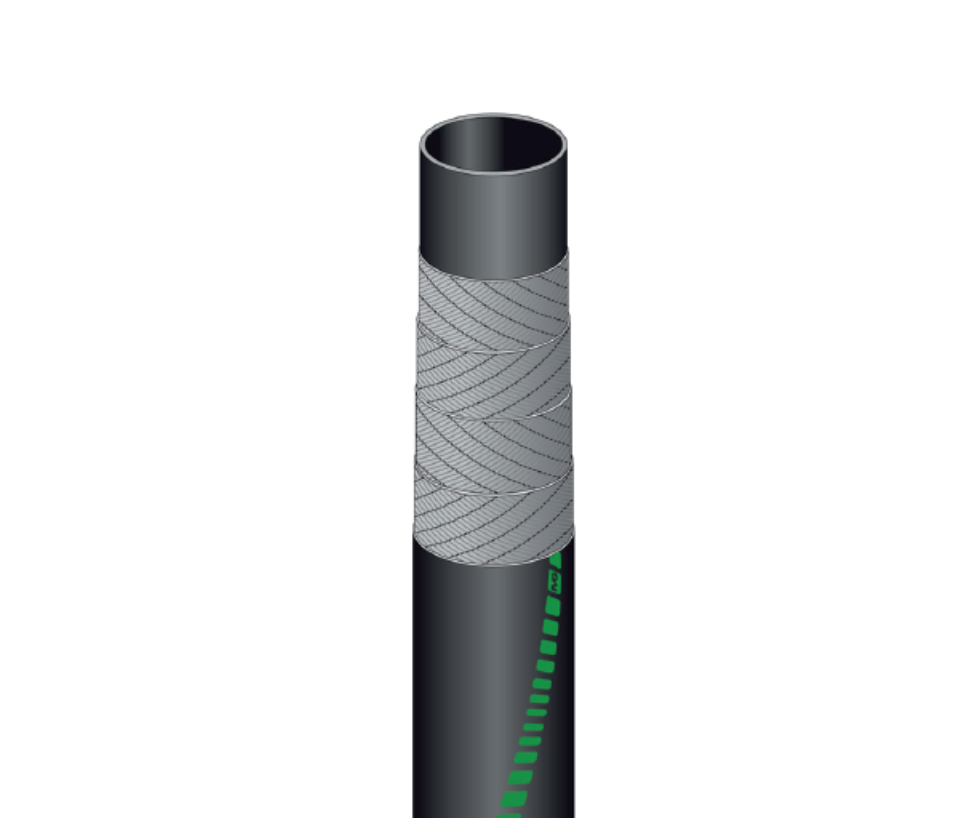

Emair/Montreal Air and Water Emair/Montreal Air and Water
Application: High qulaity water delievry hose. Softwall discharge hose for water, non corrosive fluids and compressed air; used in construction sites,...
Application: High qulaity water delievry hose. Softwall discharge hose for water, non corrosive fluids and compressed air; used in construction sites, industries and agriculture.
Temperature: from -35°C (-31oF) to +70oC (+158oF).>
Construction Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) synthetic rubber, weathering and ozone resistant.
Also available upon request: 1.Different diameters 2.Yellow or blue hose cover 3.Different working pressures.
Brand: IVG
Type : Rubber - Air/Water Hose
Industrial Application : Water, corrosive fluids, construction sites, industries and agriculture
| Part Number | Name | Inner Diameter (mm) |
Outer Diameter (mm) |
Working pressure (bar) |
Burst pressure (bar) |
Weight nominal (kg/m) |
Length max (m) |
|---|---|---|---|---|---|---|---|
| 05 12013 | Emair Air/Water Hose 13mm | 13 | 20 | 10 | 30 | 0.24 | 120 |
| 05 12019 | Emair Air/Water Hose 19mm | 19 | 26 | 10 | 30 | 0.3 | 120 |
| 05 12035 | Emair Air/Water Hose 25mm | 25 | 33 | 10 | 30 | 0.47 | 120 |
| 05 12032 | Emair Air/Water Hose 32mm | 32 | 42 | 10 | 30 | 0.79 | 120 |
| 05 12038 | Emair Air/Water Hose 38mm | 38 | 47 | 10 | 30 | 0.78 | 120 |
| 05 12045 | Emair Air/Water Hose 45mm | 45 | 58 | 10 | 30 | 0.92 | 120 |
| 05 12051 | Emair Air/Water Hose 51mm | 51 | 65 | 10 | 30 | 1.14 | 120 |
| 05 12057 | Emair Air/Water Hose 57mm | 57 | 71 | 10 | 30 | 1.85 | 120 |
| 05 12064 | Emair Air/Water Hose 64mm | 64 | 78 | 10 | 30 | 1.75 | 120 |
| 05 12076 | Emair Air/Water Hose 76mm | 76 | 90 | 10 | 30 | 1.84 | 120 |
| 05 12090 | Emair Air/Water Hose 90mm | 90 | 107 | 10 | 30 | 3.19 | 120 |
| 05 12102 | Emair Air/Water Hose 102mm | 102 | 120 | 10 | 30 | 4.16 | 120 |
